Raw Data → Staging → Structured Database
Raw datasets are processed through a structured staging layer to ensure consistency, traceability, and readiness for integration into the database system.
Below the DIVA database is structured as a relational system integrating indicators, metadata, and geospatial information.

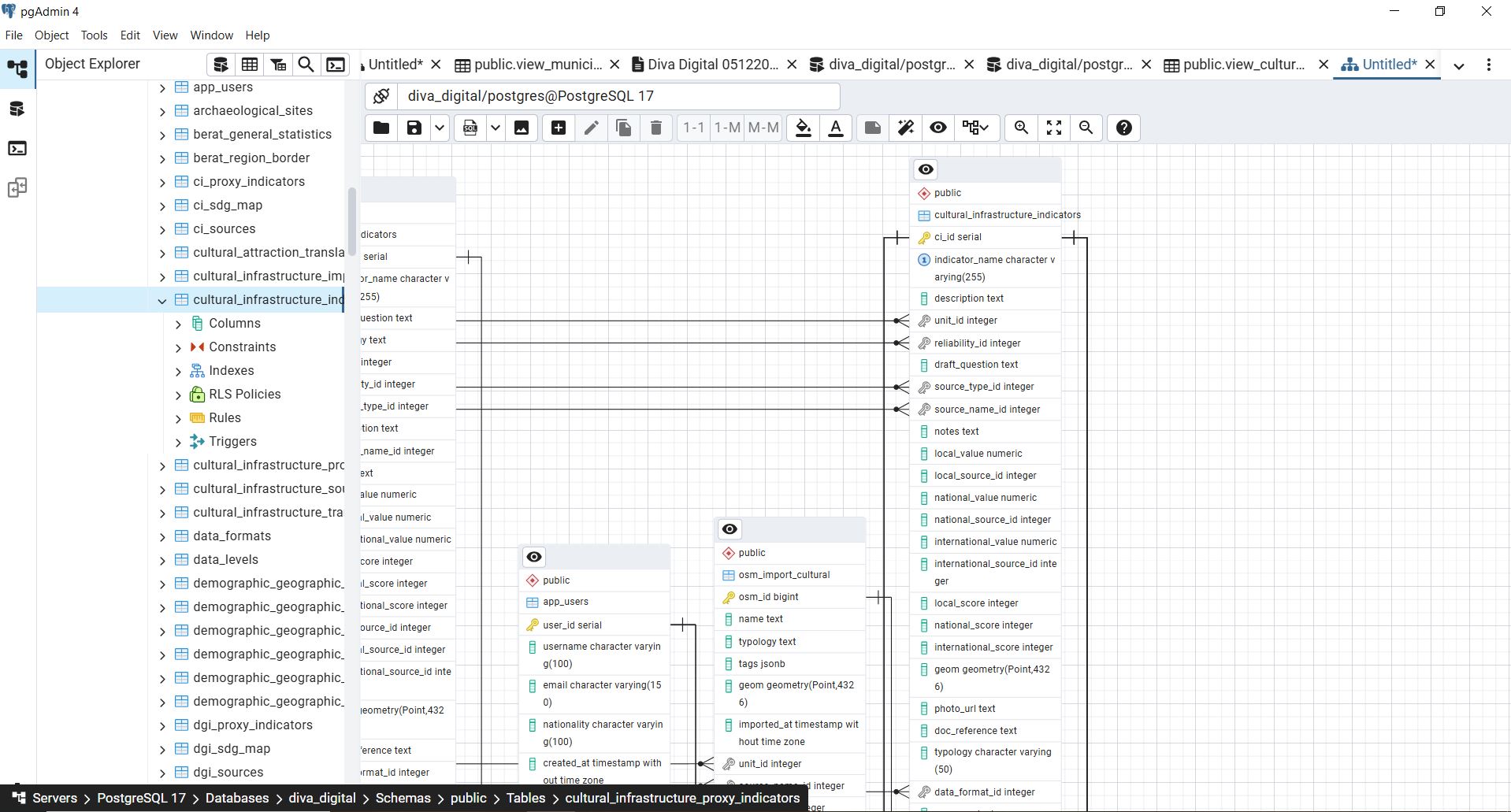

Example of DIVA relational database schema (PostgreSQL/PostGIS), showing indicator tables, metadata structure, and source integration.
Data Layers and Integration
Core indicator tables storing structured territorial data, including demographic, economic, tourism, and environmental indicators.
Geospatial data layers (PostGIS) enabling spatial analysis, mapping, and territorial visualization.
Event-based data linked to specific locations and timeframes, supporting dynamic territorial analysis.
Data on agritourism activities, including location, status, and territorial relevance within rural systems.
External geospatial data integrated from OpenStreetMap to enrich local datasets and support spatial completeness.
Metadata structure including source type, source name, reliability level, and measurement units ensuring data traceability and consistency.
These layers are interconnected through a unified data model enabling cross-domain analysis
From Data Structuring to Decision Support
Transforming structured data into policy-relevant territorial intelligence
Within the DIVA system, structured data is not only stored but actively transformed into analytical outputs that support spatial analysis, indicator monitoring, and evidence-based territorial decision-making. By integrating statistical, geospatial, and metadata layers, DIVA enables a continuous transition from data collection to actionable insights.
Thematic Maps
Spatial visualization of integrated indicators through GIS layers, enabling the identification of territorial patterns, disparities, and spatial dynamics.
Indicator Dashboards
Multi-dimensional aggregation of indicators presented through dashboards, supporting comparative analysis, trend evaluation, and performance monitoring across territories and sectors.
Decision Support
Structured analytical outputs designed to inform planning processes, policy development, and strategic interventions, ensuring traceable and data-driven decision-making.
Example Analytical Outputs
The following examples illustrate how structured data within the DIVA system can be queried and transformed into analytical outputs.

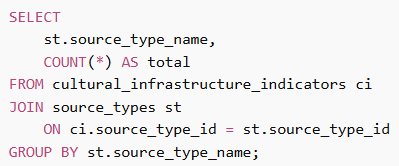

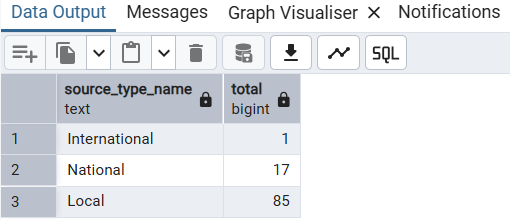

Indicator Distribution by Source Type
This query shows how indicators are distributed across different source types, supporting data reliability assessment.

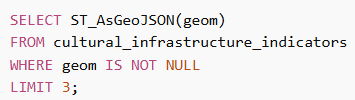

GIS OUTPUT
Reusable Analytical View

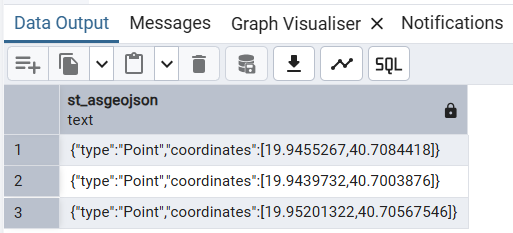

The system generates geospatial outputs in GeoJSON format, enabling integration with GIS platforms and web applications.
VIEW
Reusable Analytical View
Views standardize analytical queries, enabling consistent reuse across dashboards and reporting tools.
